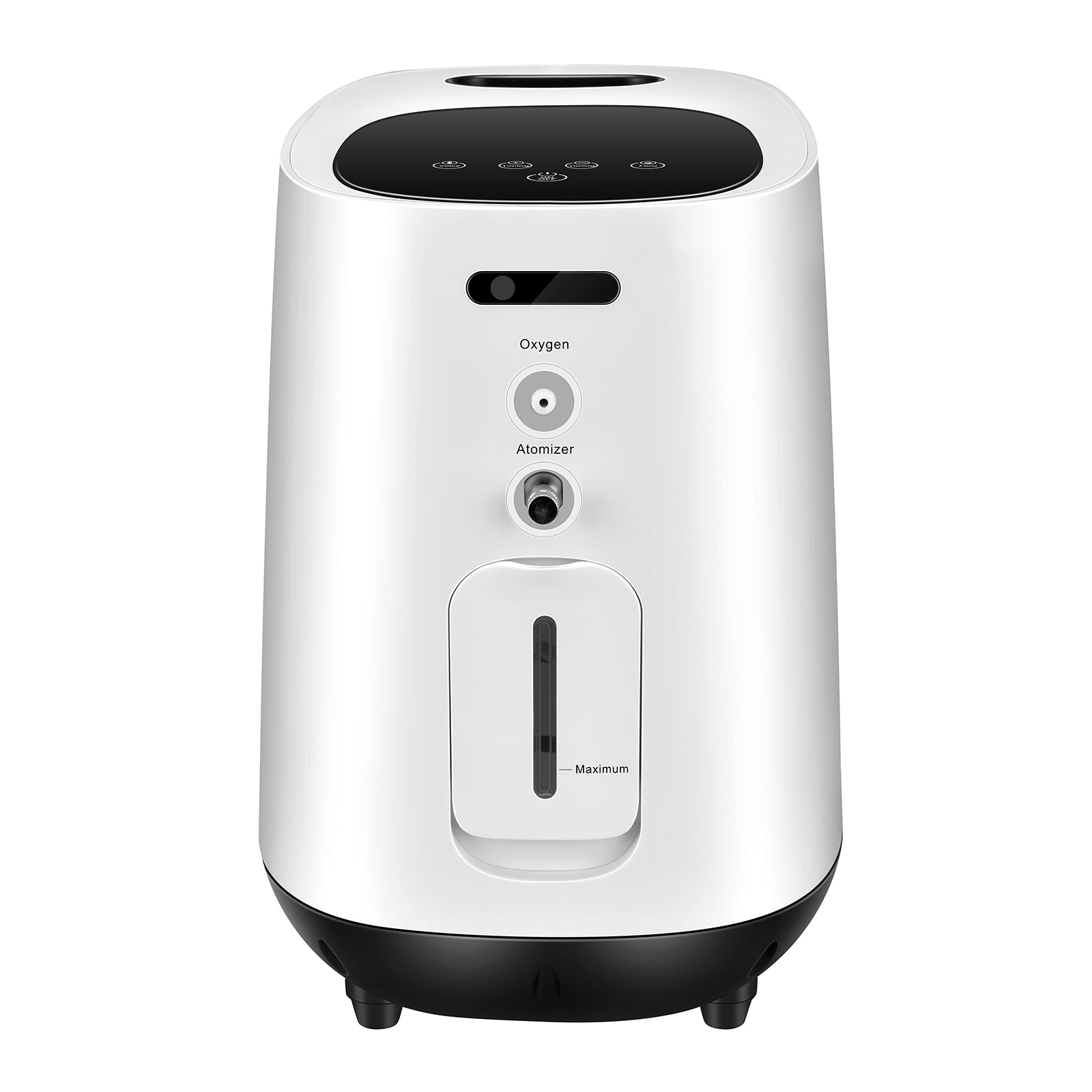

1-7 L/min Adjustable Home Oxygen Concentrator Y-104W

1.structural characteristics

➢Fully plastic shell, safe to bag.

➢ With tired hours function: display the total work time on the display screen.

➢ Equipped with timing shutdown function, easy to use.

➢ With remote control function: the machine can be operated remotely, and the user can only use it.

➢ The remote control is equipped with a "call" key: -Deal for help calling function. After pressing it, it will sound "I want to help" until it is pressed again.

➢ The compressor is equipped with a thermal protector to better ensure the safety of the compressor and the assembly.

2. Principle of oxygen supply and characteristics

Principle of oxygen supply Household Oxygen Generator adopts international advanced technology PSA (Pressure Swing Adsorption) , use air as raw material, power on at ambient temperature, absorb nitrogen by molecular sieve based ondillerent: molecular diameters. so oxygen with 90% punity can be separated from air for medical use.

Structural features All plastie shell, sate and reliable

➢With time-consuming function: display the total working time through the display screen

➢Equipped with timed shutdown function, easy to use

➢Equipped with remote control function: it can operate the machine remotely and is easy to use The remote control is equipped with "call"button: one button call forhelp function. Aller pressing, the sound of "| need help"will be sent until pressing again.

3.Main Technical Data

1、Power supply：AC230V±10% 50Hz

2、Output power；150（W）

3、Oxygen concentration：40%-90%（Adjustable by flow）

4、oxygen flow：1-7L/min

5、Noise：≤55dB（A）

6、Net weight：5.5kg

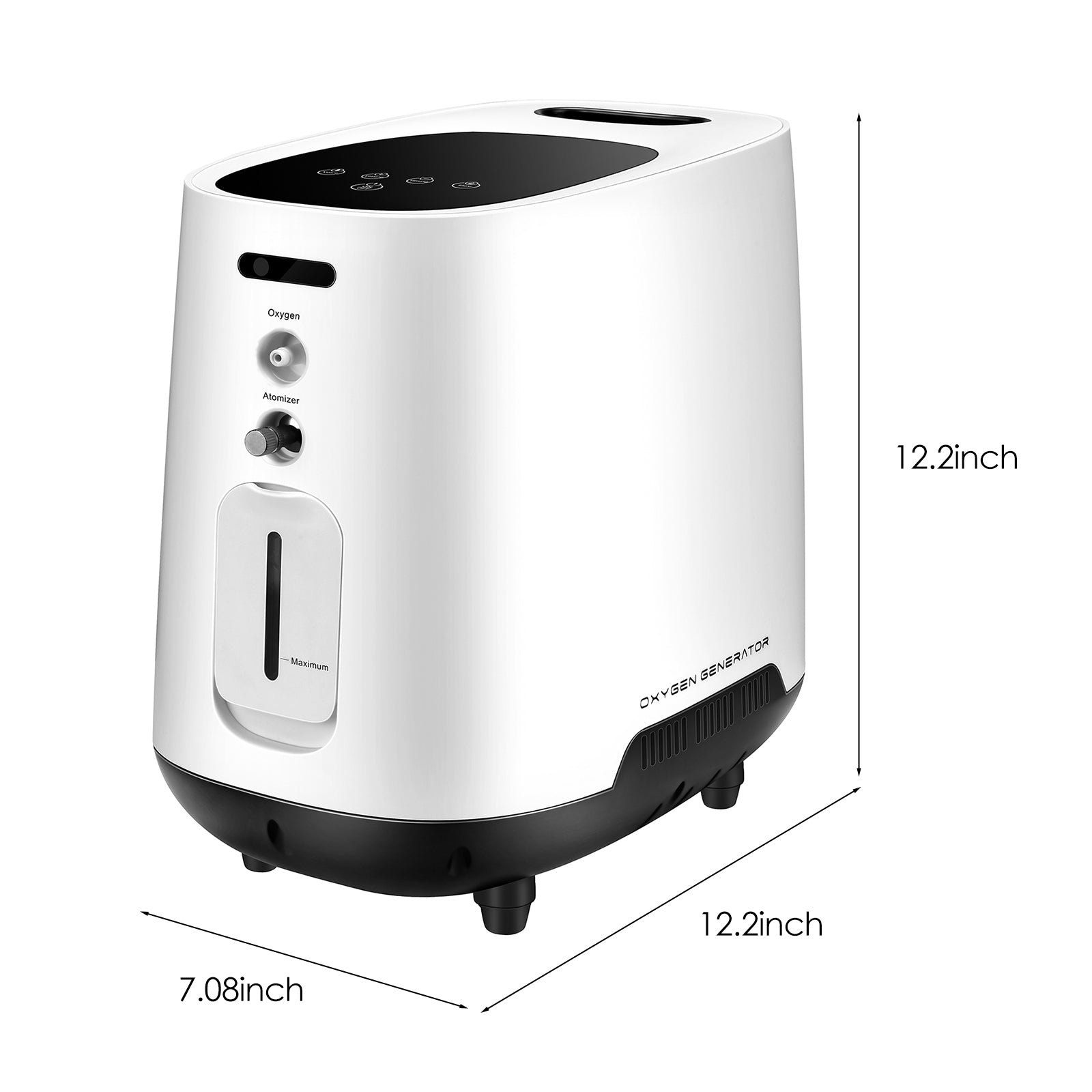

7.Oulline size：305x180x300mm

8.Safety system：

➢Current overload protection

➢High temperature of compressor，shutdown

9、Electrical classitication：II

10、Operating mode：continuous

11、Normal working environment➢Ambient Temperature：5℃-40℃：Relative humidity；≤80%：

➢Atmosphere pressure；86kPa-106 KPa；

Note: The oxygen generator should be stored in a well-ventilated room without strong sunlight, no corrosive gas, and avoid heavy farming and inversion during transportation.

13. Use period_three years (except vulnerable and consumables）

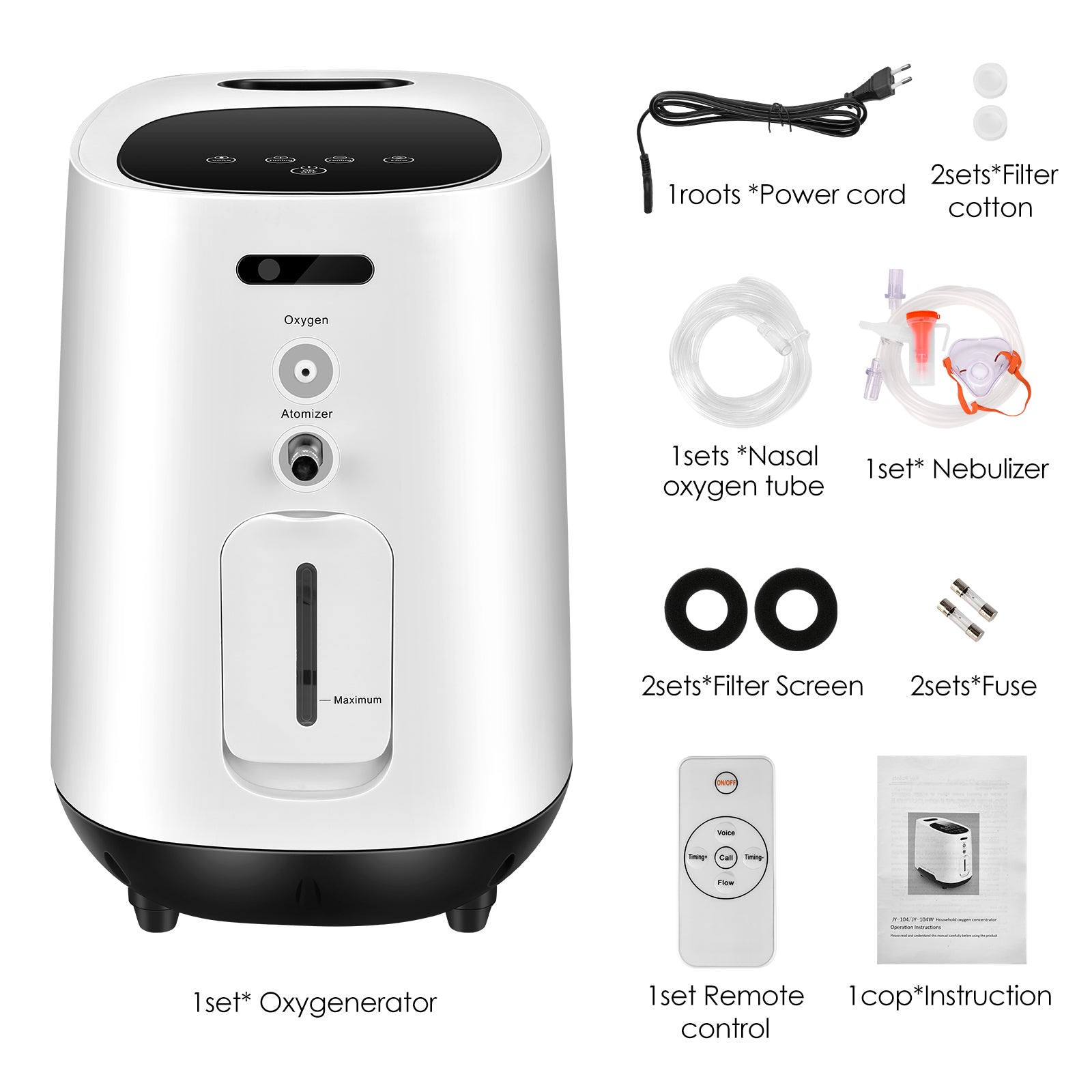

5、 Packing list

1、 Oxygenerator 1 set

2, Power cord 1roots

3、Nasal oxygen tube 1sets

4、 Filter 2sets

5、 Fuse 2sets

6、 Instruction 1copy
